Different Parameters, Different Price. Price Reference Only.
Recommendation Index
Production Process:
The trailer's main beam is welded with I-beams, the body is welded with fully automatic submerged arc welding and carbon dioxide gas shielded welding, shot blasting and rust removal, and the baked paint is strong and durable, with a very beautiful appearance. WBACO brake system is installed, with global warranty.
Advantage:

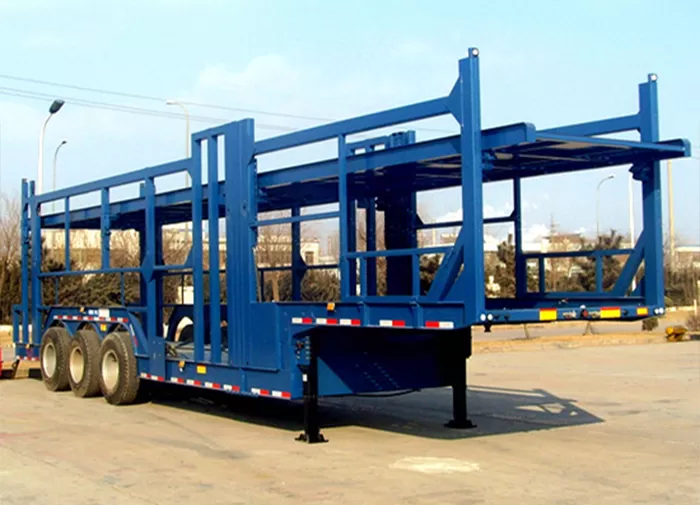

The three-axle car carrier trailer has a stronger carrying capacity. The trailer has a main vehicle power take-off and a trailer power group, which provides double protection.

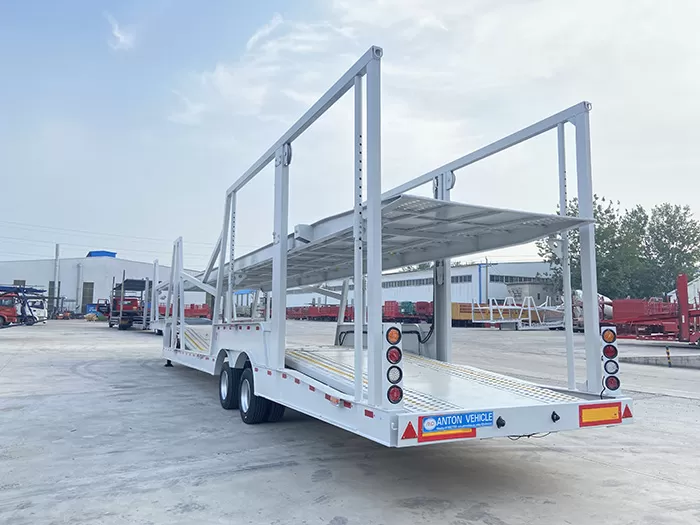

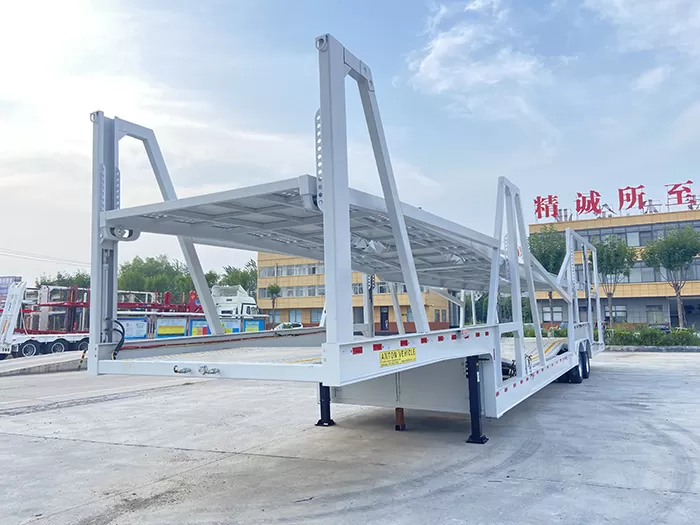

Double-deck design, hydraulic lift or electric lift to complete the second-layer lifting operation
The trailer uses global joint warranty accessories such as JOST and WABCO, which can make users worry-free after-sales.

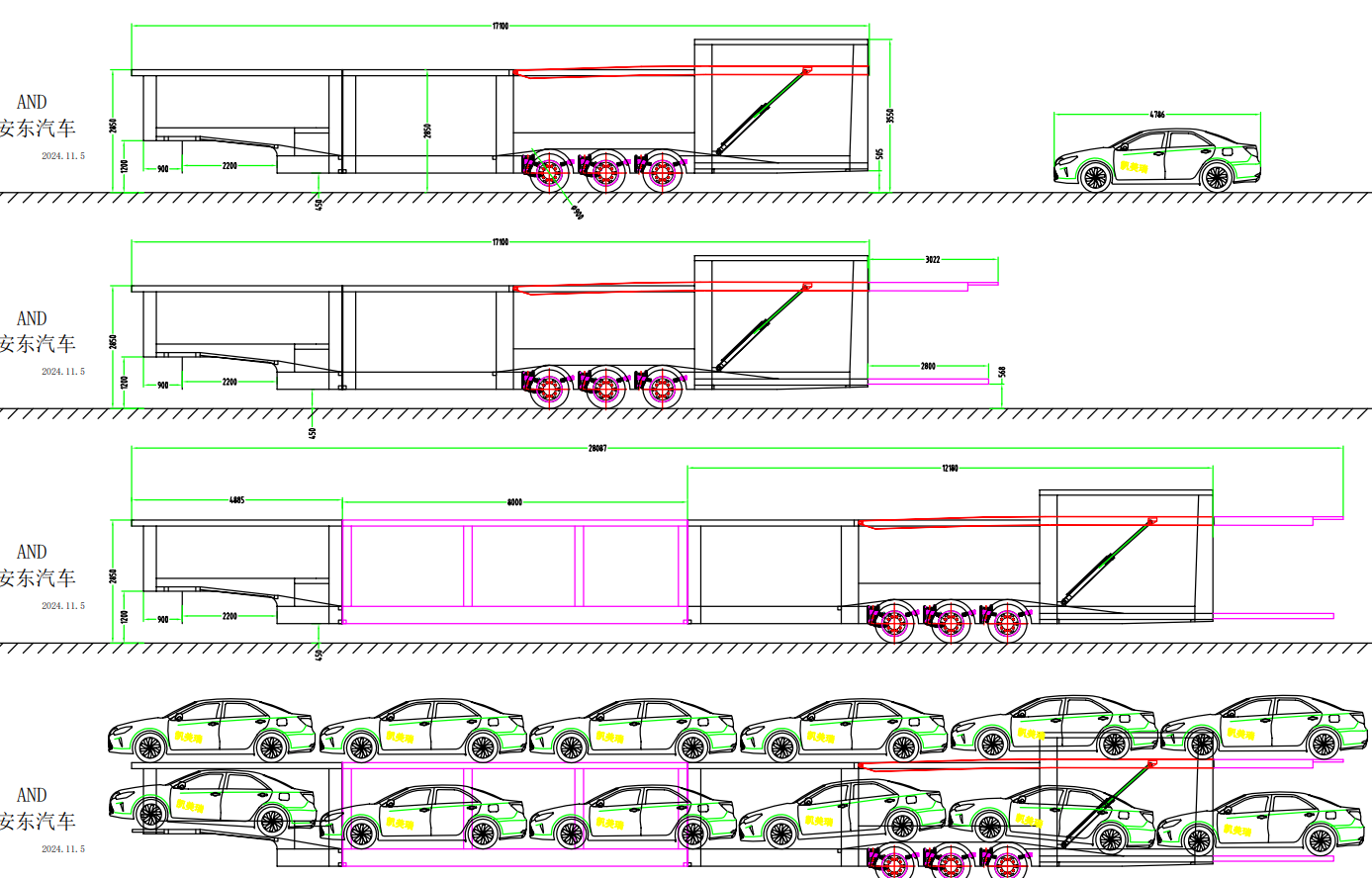

The maximum transportation of the trailer can be designed with 6-10 parking spaces.
For sea transportation, we usually use bolt installation, stacking or container transportation to help users save sea transportation costs.
Currently, it is commonly used in the Middle East and Africa for 3-axle car trailers,
Technical Specifications
| Items | Car carrier trailer AND9270TCL | |
| Loading Capacity | 8-10 cars | |
| Axle | 3 pieces, 13T FUWA/BPW axle | |
| Tyre | 12 pieces, 265/75R19.5 | |
| Dimensions(LxWxH) | 20000-36000mm x 3000 x 3900mm | |
| Tare weight | 9 tons to 11 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.25 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345B | |
| Chassis | upper 16mm, lower 18mm. Mid web 10mm | |
| Kingpin | 2' or 3.5' interchangeable | |
| Landing Gear | JOST E100 | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |
