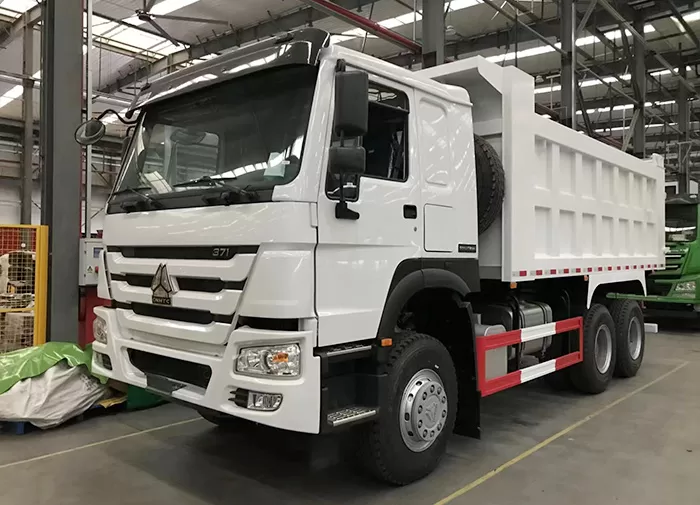

Sinotruk HOWO 6x4 Dump Truck


Different Parameters, Different Price. Price Reference Only.

Recommendation Index

Sinotruk HOWO 6x4 Dump Truck

Chassis Model: ZZ3257M327W (Left/ Right Hand Driving Type Optional)


Sinotruk HOWO 6x4 Dump Truck
Chassis ModelZZ3257M327W (Left/ Right Hand Driving Type Optional)
EngineModel: WD615.47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
ClutchSingle-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance
GearboxSINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)
Front AxlesHF9, 9000kg with drum brake system
Rear AxlesHC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73
SuspensionFront suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer
Steering SystemZF brand power steering, model ZF8118 , hydraulic steering with power assistance
Braking SystemFront drum rear drum brake, four-circuit protection valveService brake: dual circuit compressed air brakeParking Brake(emergency brake): spring energy, compressed air operating on rear wheelsAuxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
Tires12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre
Fuel Tank Volume (L)300
Dead Weight12020/8630
Gross Vehicle Weight (kg)25000
Rated Loading Weight (kg)12850; 12640 optional
Overall Dimension (LxWxH) (mm)7545x2550x3400
Wheelbase (mm)3225+1350
Min.Ground Clearance (mm)314
Approach/Depart Angle(°)19/ (27/65)
Gradeability (%)≥50
Min. Turning Diameter (m)15
Cargo Body Size (LxWxH) (mm)4800x2300x1200
Cargo Body Volume (m3)13.25
Remark (Engine Power Option)336HP; 371HP
